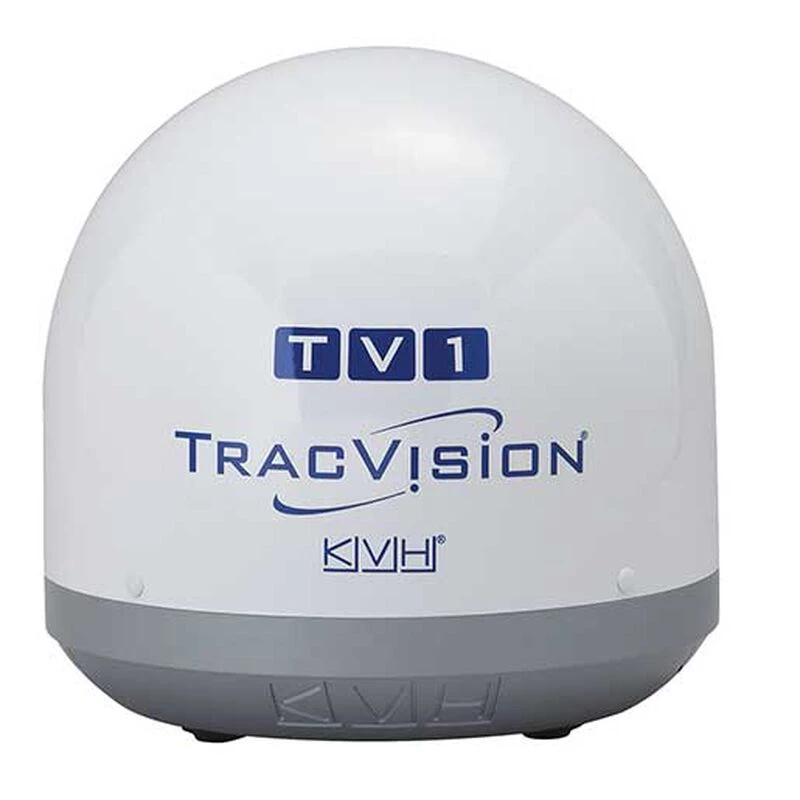

KVH INDUSTRIES TracVision TV1 Marine Satellite TV System, North America

Bring Top Performance and HDTV Onboard with an Ultra-compact Antenna

With its 12 1/2″ antenna, the TracVision TV1 marine satellite television system is ideal for smaller boats and coastal cruising or use on inland waterways. An easy-to-use installation wizard and single-cable design make this antenna perfect for fast installations or retrofits.

Now includes either a free DISH Network 211Z HD receiver or DIRECTV H25 SWM-compatible receiver. Just redeem the coupon that’s included in the box for your free receiver!

New Features and Technology

TracVision TV1’s sleek, IP-enabled TV-Hub is the belowdecks powerhouse that makes this advanced system simple to use. The TV-Hub enables a friendly user interface that you can access from any mobile device or laptop, providing system information at your fingertips. Bring the DVB-S2 compatible TracVision TV1 onboard today and start enjoying favorite programming from DIRECTV^®, DISH Network^®, Bell TV, and select linear Ku-band regional services worldwide.

Features:

• 32 cm (12 1/2″) diameter antenna features proprietary RingFire™ technology for stronger signals, wider geographic coverage, and better reception
• Supports DIRECTV, DISH Network, Bell TV, and select linear Ku-band regional services worldwide
• Sleek IP-enabled TracVision TV-Hub delivers easy setup and operation, and easy user interface for system information from any smartphone, tablet, smart TV, or computer
• HDTV compatible (Ku-band services only)
• Integrated Single Wire Multiswitch (SWM-8) built into belowdecks TV-Hub supports up to eight DIRECTV receivers
• Single coaxial cable for power, data, and video enables easy installations and retrofits
• DVB-S2 compatible
• Advanced inertial-based stabilized search for fast satellite acquisition
• High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas
• Built-in worldwide satellite library
• IP AutoSwitch option for multiple receiver installations – for simple auto-switching with the master receiver’s remote control, when used in North America with a DiSEqC-compatible satellite receiver (DISH Network and Bell TV)

Basic Specs:

• Satellite Coverage Regions: North America
• Antenna Dish Diameter: 12 1/2″
• Dome Size: 13 1/2″ Diameter x 13 5/16″H
• Minimum EIRP: 51 dBW (Ku-band)
• HDTV Compatible: Yes (Ku-band services). Requires a compatible HD receiver, HD-ready television, and subscription.
• Skew Control: Manual
• LNB Types Available (polarization/output): Linear Universal Single receiver system/Circular
• Tri-Americas LNB Compatible: No
• Elevation/Azimuth Range: +20° to +70°/Continuous
• System Power: 10-30V DC, 42 watts nominal
• Warranty: Two-years parts, one-year labor
